CRUSHING GYPSUM
More Coarse Grain, Less Fines
Less Downtime, More Throughput
High-Performance Gypsum Crushing, Engineered in Germany
Crushing raw gypsum — especially in humid climates — poses a major challenge. Fine particles, combined with moisture, cause material to stick to the plant, leading to high maintenance requirements, machine damage, and downtime.
Crush + Size Roll Crushers and Sizers, thanks to their gentle crushing action, are the ideal primary and secondary crushers for raw gypsum. Extremely slow roll rotation and precisely designed crushing tools deliver the optimal crushing result for downstream processes: minimal fines, a coarse grain size distribution, and effective limitation of the maximum grain size for the downstream grinding and calcination processes.
Adjustable crushing gap
PRECISE GRAIN SIZE –
BUILT-IN PROTECTION
For the most compact process possible, screening can be omitted in both the primary and secondary stages (depending on the product size required).
The optional adjustable crushing gap allows the final grain size to be precisely tuned, while at the same time effectively protecting the crushers against overload situations and foreign objects.
Primary crusher SZR 700
- Feed size: 0–600mm
- Target grain size: P95 < 0–150mm
- No pre-screening required, no circulation required
- Fixed crushing gap

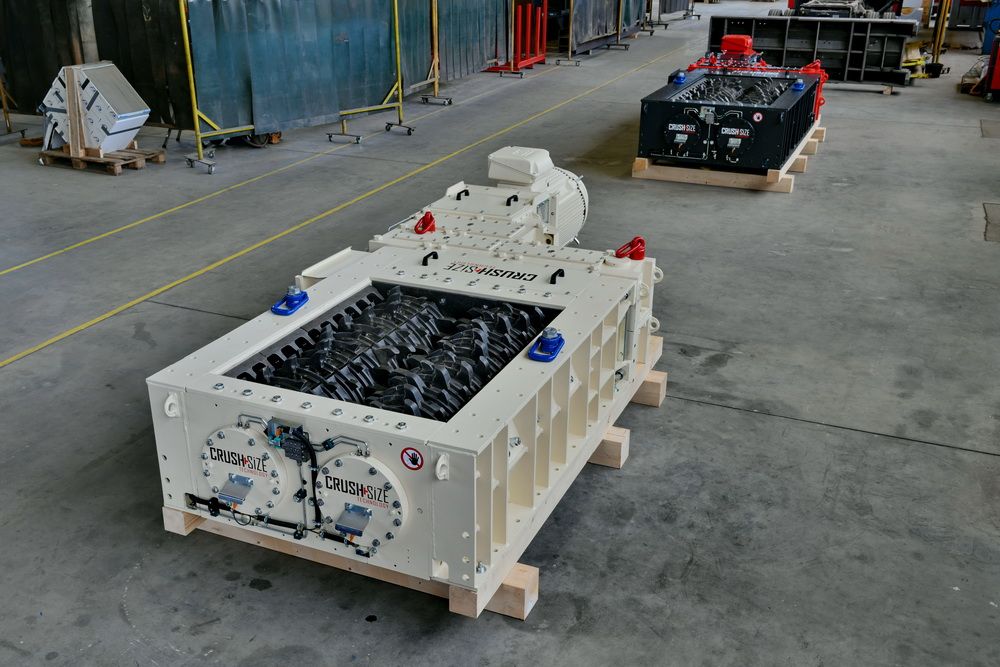

Secondary crusher DRC 550 / SZR 550
- Feed size: 0(60)–150mm
- Product size: P95 < 60mm
- DRC with gap adjustment, sizer with fixed crushing gap
- No recirculation required
THE ADVANTAGES AT A GLANCE
minimal fines generation
coarse grain size distribution
lowest oversize (P95 < 60mm in the secondary stage)
low energy consumption
lowest dust generation
compact machine design
compact production process
