DRC 700-10 secondary crusher for limestone for maximum yield of coarse grain for the kiln.
12. November 2025
The DRC 700 as a secondary crusher in limestone for maximum yield of cubic kiln stones and minimal fines.
DRC Double Roll Crusher
Mining
Quarrying
Recycling
High Performance Crusher. Redefined.
ONE CRUSHER FOR EVERY APPLICATION
The Crush + Size DRC is a completely new type of roll crusher that removes the traditional limitations of double roll crushers. It combines the direct-drive principle of a sizer with the adjustable crushing gap of a classic double roll crusher – a combination that has not existed at this level before. Slow-running, precise, and fully adjustable.
The result: a machine that combines the best of both worlds – the gentle, efficient crushing process of a roll crusher with a reduction ratio you would expect from impact or cone crushers.
ADJUSTABLE SIZER
Conventional double roll crushers couldn’t compete with jaw crushers, cone crushers or impact crushers when it came to reduction ratio and the handling of hard materials. That’s changed.
The DRC series combines the inherent process advantages of roller crushing with a significantly higher reduction ratio – making it a more efficient alternative that delivers real advantages in production. Compared to standard roller crusher solutions on the market, the DRC stands apart with a higher reduction ratio, higher throughput capacity, and the ability to handle even the hardest materials.
Integrated overload protection allows even materials with a high proportion of foreign objects to be processed without interruption.
Primary Stage

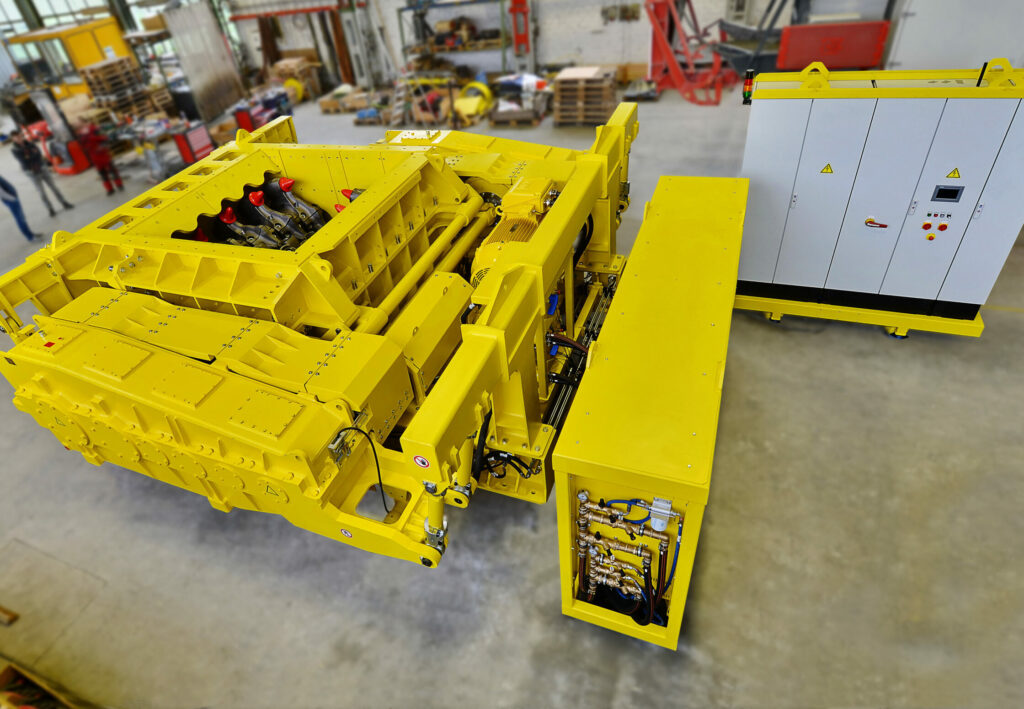

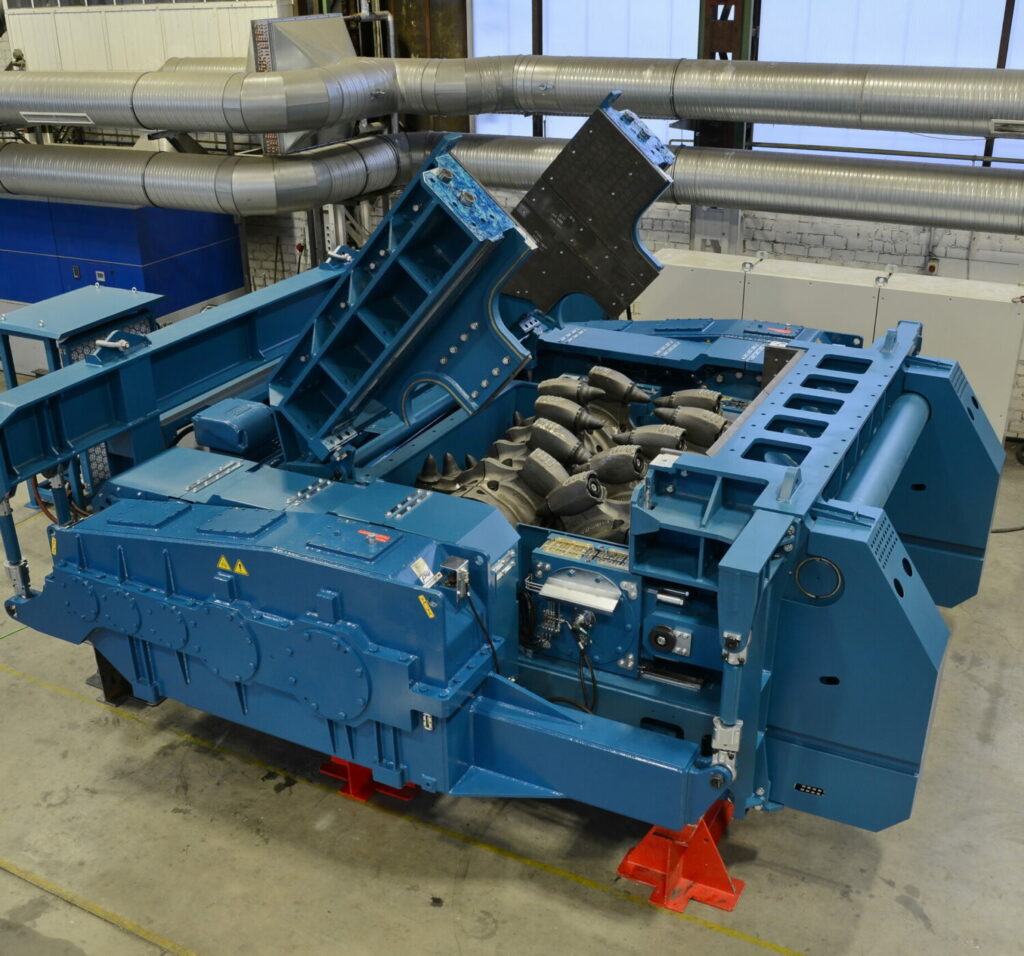

DRC 1400-900 (DRC 900-20 pictured)
Secondary Stage

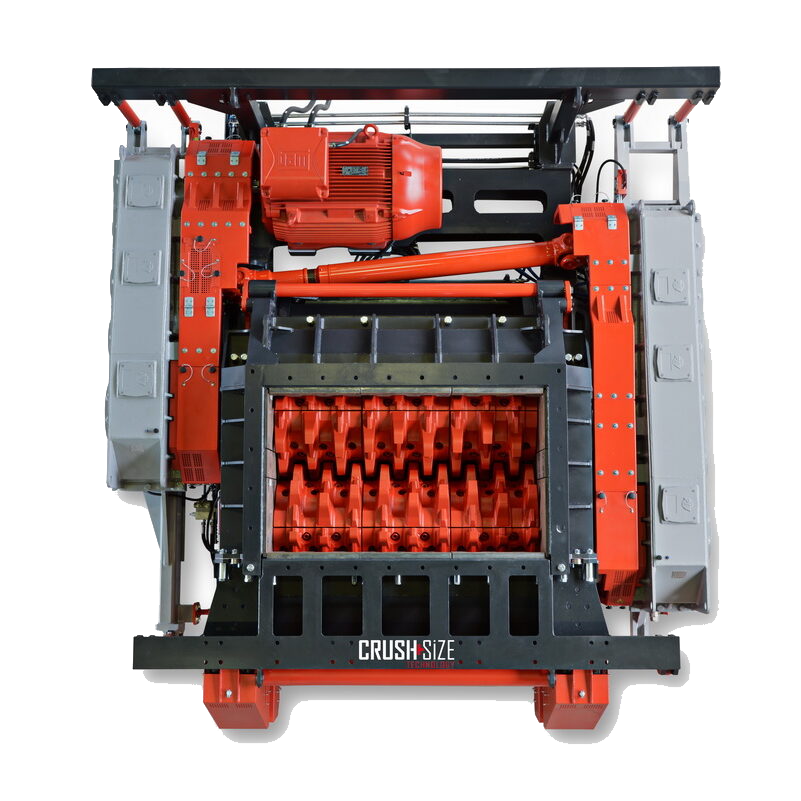

DRC 700-450 (DRC 700-15 pictured)
THE ADVANTAGES AT A GLANCE
high reduction ratio
low fines generation
minimal oversize
hydraulic gap adjustment with overload protection
automated reverse operation with high starting torque
efficient drive technology
low noise emissions
low dust generation
OUR ROLLER CRUSHERS HANDLE THE HEAVY WORK. WITH SOLUTIONS IN THE DETAILS.
At a glance
Technical Characteristics
Crushing gap
Adjustable
The final product can be precisely adjusted using the hydraulic gap adjustment—throughout the entire service life of the wear parts.
Overload protection
Integrated
The hydraulic gap adjustment serves as overload protection mechanism.
Reversing operation
Automated
Blockages can be eliminated with the help of an intelligent control system.
Crushing tools
Quick-Change-System
– Replacement of individual crushing segments without removing the rollers.
– Replacement of the entire roller.
Control system
Machine is fully automated
Depending on the customer’s requirements, the crusher can be supplied with its own control system or integrated into the control system of the higher-level plant.
